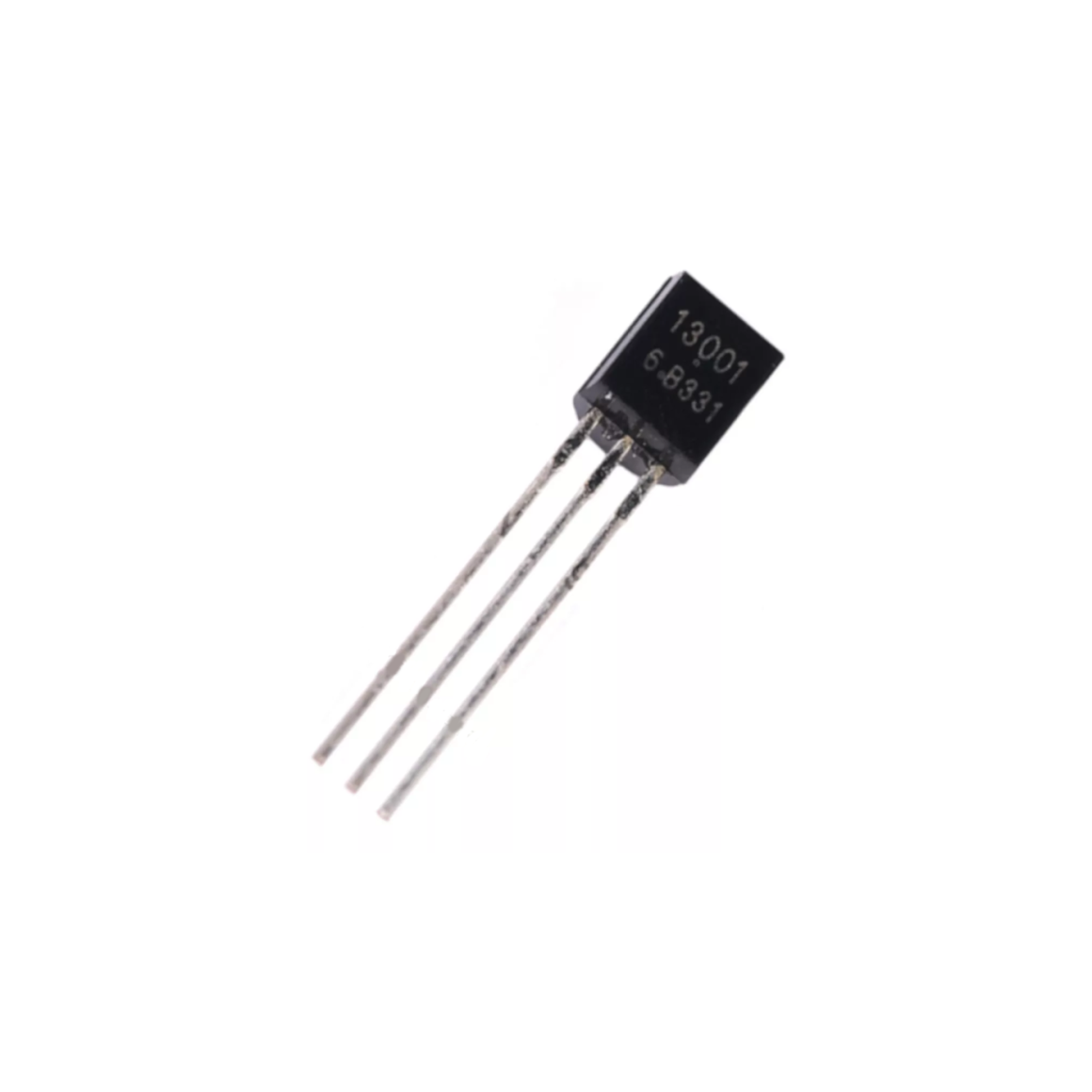

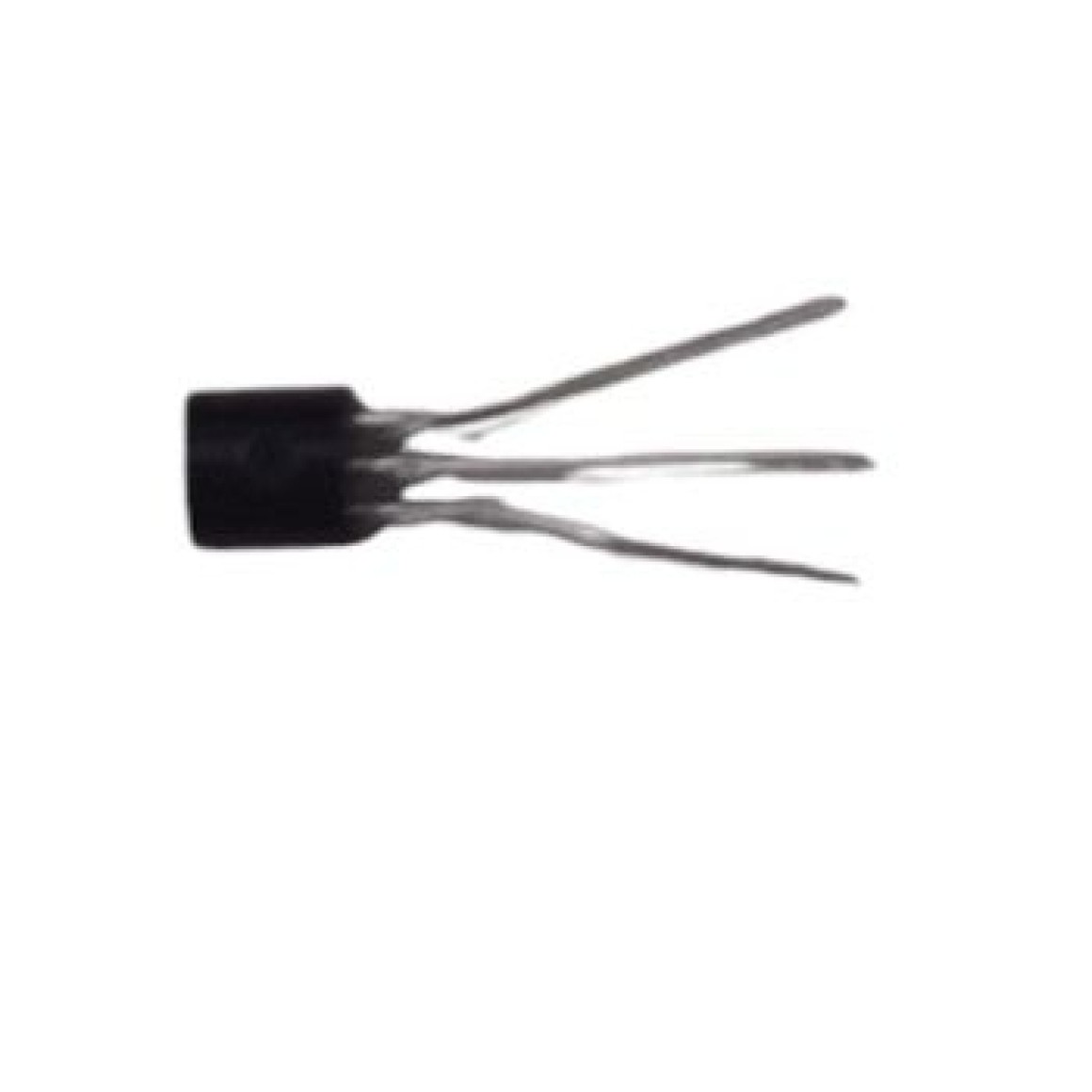

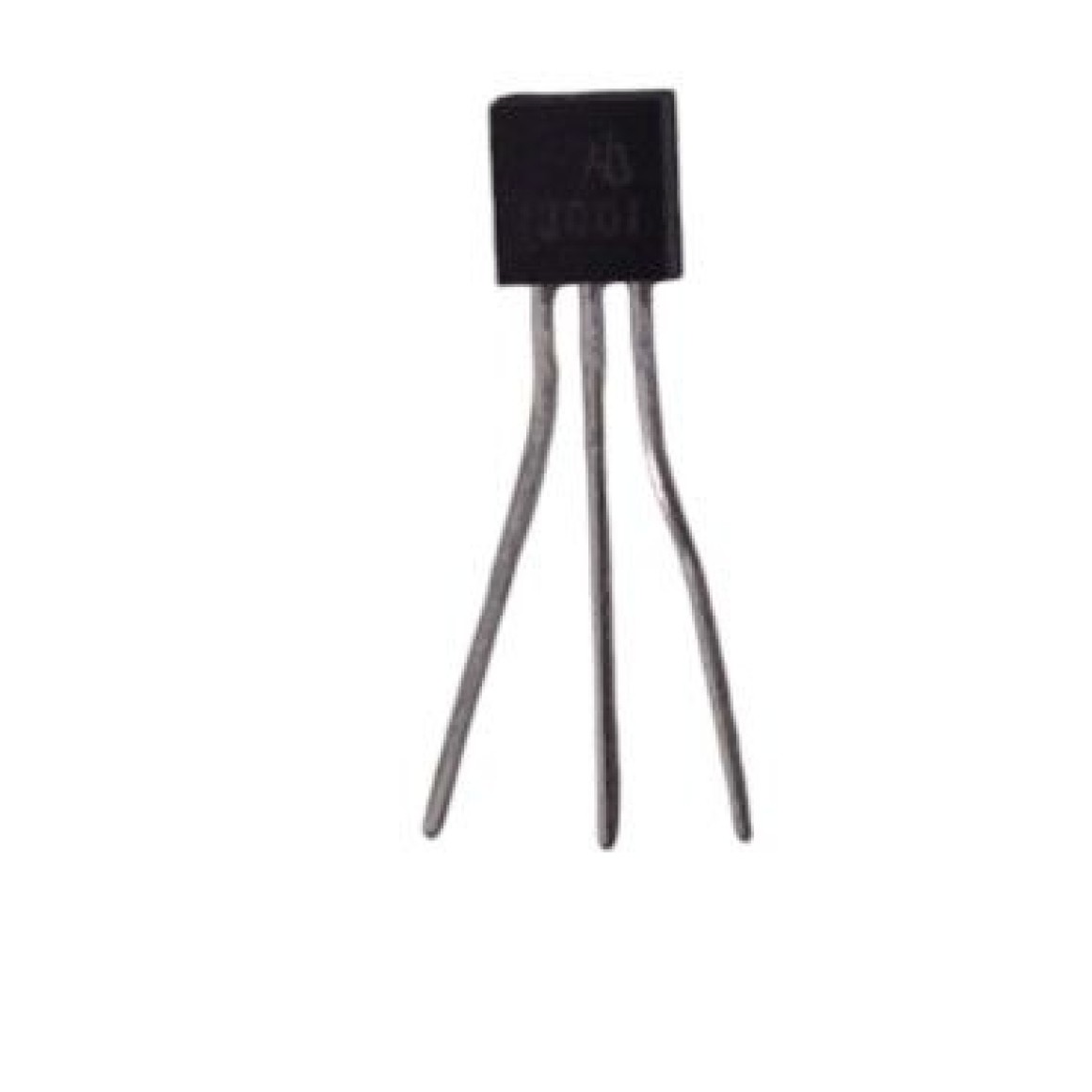

Transistor Mje13001 TO-92 10 Peças

Transistor Mje13001 TO-92 10 Peças

Type Designator: MJE13001
Material of Transistor: Si
Polarity: NPN
Maximum Collector Power Dissipation (Pc): 0.75 W
Maximum Collector-Base Voltage |Vcb|: 600 V
Maximum Collector-Emitter Voltage |Vce|: 400 V
Maximum Emitter-Base Voltage |Veb|: 7 V
Maximum Collector Current |Ic max|: 0.2 A
Max. Operating Junction Temperature (Tj): 150 °C
Transition Frequency (ft): 8 MHz
Forward Current Transfer Ratio (hFE), MIN: 10
Package: TO-92 SOT-89
